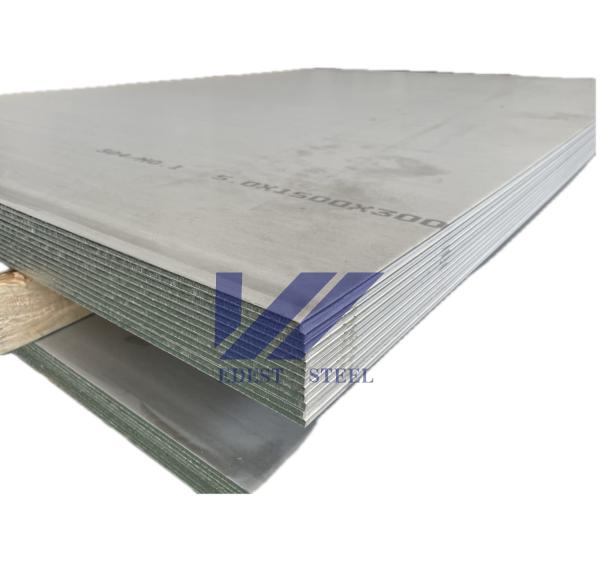

ASTM A240 Criteria Stainless Steel Plate SS 316 316L 304 304L
Plates Custom Cutting
Product Description:
304 stainless steel plate and 316 stainless steel plate are two
common stainless steel materials, which have a wide range of
applications in the stainless steel market
304 stainless steel plate:
304 stainless steel is one of the most common and widely used
stainless steel materials. It is composed of 18% chromium and 8%
nickel and is often referred to as "18-8" stainless steel. 304
stainless steel plate has excellent corrosion resistance and can
resist corrosion under most common chemicals and atmospheric
conditions. It also has good processing properties and weldability.
316 stainless steel plate:
316 stainless steel plate is a stainless steel material with higher
corrosion resistance. It adds 2-3% molybdenum on the basis of 304
stainless steel. This addition of molybdenum improves the corrosion
resistance of 316 stainless steel plates, especially in acidic
conditions and chloride environments. 316 stainless steel plates
are widely used in marine environments and chemical industries
Features:
304 stainless steel plate features:
Corrosion resistance: Resistant to corrosion by most acidic and
alkaline solutions, suitable for indoor and outdoor environments.
Excellent thermodynamic properties: good heat resistance and
oxidation resistance at high temperatures.
Good processing performance: It can be used for cold processing,
hot processing and deep drawing.
Widely used: used in the manufacture of food processing equipment,
chemical equipment, pressure vessels, pipelines, building
structures, etc.
316 stainless steel plate features:
High corrosion resistance: It can resist corrosion from a variety
of strong acids, alkalis, and salt solutions, and is suitable for
seawater environments and chemical industries.
Good high temperature resistance: Good heat resistance and
oxidation resistance at high temperatures.
Excellent tensile strength and fatigue resistance: suitable for
applications requiring high strength and durability.
Wide range of applications: used in marine equipment, chemical
processing equipment, pharmaceutical equipment, food processing
equipment, etc.
We have sufficient stock of 304 and 316 stainless steel plates, and
our price and stock situation will change with the material cost.
You can buy suitable stainless steel plates at EDEST
Technical Parameters:
| Product name | (Hot rolled /cold rolled )304/316 stainless steel plate |
| Width | 1220mm/1500mm/2000mm or custom size |
| Thickness | 0.08 - 150 mm |
| Standard | ASTM A167,ASTM A176,ASTM A240,ASTM A262,ASTM A666
ASTM A693,ASTM A763 |
| Finish | 2B, BA, No.1, No.4, No.8, 8K,mirror, checkered, embossed, hairline,
sandblast stain brush or as required |
| Surface protection | PVC flim coated, paper interleave, anti-fingerprint |
| Material | 201, 304, 304L, 304J1, 321, 316, 316L, 316Ti, 317L, 347H, 310S,
309S, 904L, 2205 …. |
| MOQ | 0.5 Ton per size , samples free ! |
| Packing | Sea worthy package |
| Application | 1.Construction
2.shipping building or Ship repaire
3.Petroleum & Chemical Industries
4.Food and Mechanical Industries
5.Pressure vessel (Boiler or Heat Exchange)
6.Machinery and Hardware Industries
7. Oil & Gas industry |
The selection of stainless steel plates should also be evaluated
based on specific application needs and environmental conditions.
In addition to 304 and 316 stainless steel plates, EDEST also has
other grades of stainless steel materials to choose from. For
example, 430 stainless steel has higher magnetism and lower
resistance. Corrosion properties, suitable for certain
applications.
Stainless Steel Plate
Stainless Steel Coil
Stainless Steel Strip
Stainless Steel Bar
Stainless Steel Pipe
Stainless Steel Pipe Fittings
Stainless Steel Flange
Available in various sizes, dimensions, shapes and Custom size and
shape available
| Item | Material | Specification |
| 316Series Stainlee Steel Plate | 316L/2B | Thickness:0.4-40 mm Width:≥1000 mm Length:≥6000 mm |
|
| 316L/NO.1 |
| 316Ti |
| 317L |
| 317L |
| 304 Series Stainlee Steel Plate | 304/2B | Thickness:0.4-40 mm Width:≥1000 mm Length:≥6000 mm |
| 304/NO.1 |
| 304L/NO.1 |
| 321 Series Stainlee Steel Plate | 321/2B | Thickness:0.4-60 mm Width:≥1000 mm Length:≥6000 mm |
| 321/NO.1 |
Chemical composition of 316/316L Stainless Steel Plate
| CHEMICAL COMPOSITION |
| Classification | Grade | Chemical Composition(%) |
| C | Si | Mn | P | S | Ni | Cr | Mo | N |
| Austenitic stainless steel | 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 12.00-15.00 | 16.00-18.00 | 2.00-3.00 | |
316/316L Stainless Steel Plate Mechanical and Physical Properties
| Grade | Tensile Str
(MPa) min | Yield Str
0.2% Proof
(MPa) min | Elong
(% in 50mm) min | Hardness |
| Rockwell B (HR B) max | Brinell (HB) max |
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
316 stainless steel plate is a stainless steel material with good
corrosion resistance, high temperature performance and mechanical
properties, and is widely used in many fields
Applications:
- 316L stainless steel plate is widely used in many industries and
fields
- Chemical industry
- pharmaceutical
- car
- food processing
- Marine Engineering
- ship building
- medical instruments
- Building Decoration
- Railways and transportation
- Energy and Power
- Pipes and overhead water tanks
- Chemical and petrochemical industry
- oil and gas industry
- Kitchenware and food processing industry
- Manufacturing tanks, pipes, heat exchangers, valves, pressure
vessels, tableware, medical device components, etc.
Customization:
- We provide stainless steel plate/sheet customization services to
meet customers' individual needs
- Material selection: According to customer requirements and
application scenarios, we provide a variety of stainless steel
materials to choose from, and we can provide professional
suggestions based on customer needs.
- Custom Sizes: Whether standard or non-standard sizes, we are able
to provide precision cutting and custom processing to ensure our
customers' exact specifications.
- Surface treatment: According to customer needs, we can provide
different surface treatment solutions
- Processing technology: According to customer requirements, we can
perform precision processing according to design drawings or
samples to ensure the quality of the product.
- Quality Assurance: We adopt strict quality control measures to
ensure that the quality of materials meets international standards
and verify product performance and reliability through inspection
and testing.
- High quality stainless steel plates are available through our
customization services. Our professional team provides customized
advice and technical support to ensure the quality and satisfaction
of the final product.
Stock and availability:
ASTM A240M – Stainless steel coil plate
Our 316/316L Stainless Steel Sheets Are Generally Available In
Stock In A Variety Of Thicknesses And Sizes, From Thin Gauge Sheets
To Thicker Gauges.
| 316 Stainless Steel Plate |
| Grade | 316/316L |
| Thickness (mm) | 3.0 to 60.0. |
| Width (mm) | 1250 , 1500, 2000 & 2500 |
| Length (mm) | 3000, 6000 & customer specific cut-to-length. |
| Finish | 2B , No.1 or custom |
| Plasma profiles | To customer drawings. |
Information provided is for standard stock products
If you need non-standard products, please contact us
EDEST - Surface Treatment
We Have Our Own Surface Processing Workshop, And Through Our
Surface Treatment Processing, We Can Obtain Different Surface
Finishes, Including 2B (Smooth Matte Finish), #4 (Brushed Finish)
And Mirror Finish, Etc., With Freedom Of Choice.
| Finish | Thickness | Characteristics | Applications |
| No. 1 | 3.0mm~50.0mm | Finished by hot-rolling, annealing and pickling,
characterized
by white pickled surface | Chemical industry equipment, Industrial tanks |
| No. 2B | 0.3mm~6.0mm | Finished by heat treatment, pickling after cold rolling,
followed
by skin pass line to be
more brighter and smooth surface | General Application Medical Instruments,Tableware |
No. BA
(Bright Annealed) | 0.5mm~2.0mm | Bright heat treatment after cold rolling | Kitchen utensil, kitchen ware,architectural purpose |
| No. 4 | 0.4mm~3.0mm | Polishing with No. 150 to No.180 mesh abrasives
The most
popular finishes | Milk & Food processing acilities, Hospital Equipment,
Bath-tub |
| No. 8 | 0.5mm~2.0mm | A mirror-like reflective surface by polishing with
finer abrasives over 800 mesh | Reflector, Mirror, Interior-Exterior decoration forbuilding |
| HL(Hair Line) | 0.4mm~3.0mm | Finished by continuous linear polishing | Architectural purposes, escalators, kitchen ware
vehicles |
Packing and Shipping:
Packaging and delivery |
Packaging Details | With wooden pallets, Standard Sea Worthy Package or as per customer
required |
| We wrap the stainless steel products with outer packaging(edgeboard
and wood footplate) and inner packaging (corrugated board or
customized). |
Supply Ability
Packaging and delivery |
Supply Ability | 5000 Ton/Tons per Month |
Lead time
Lead time |
Quantity (pieces) | 1 - 100 | 101 - 500 | 501 - 1000 | > 1000 |
Lead time (days) | 5 | 7 | 15 | To be negotiated |
Related Products
Why Choose Us
- Professional and reliable steel products supplier, CE, ISO and SGS
certified source manufacturer from China
- Our store has a large scale of metal products, with an inventory of
more than 50,000+ tons, and can be shipped quickly.
- We have officially obtained CE, ISO, and SGS certification.
- We are a comprehensive steel enterprise with “one-stop” service
from production, processing and export of products.
Manufacturing Capacity
- We have sufficient stocks of stainless steel coils and are equipped
with Kaiping processing equipment workshops. We can customize the
width, thickness and length of stainless steel coils according to
requirements.
- Thickness: 0.5mm to 16mm
- Width: Maximum width ≤ 2800mm
- Flatness: Smooth surface, overall straightness
- Dimensional accuracy: length and width dimensions are accurate and
meet customer requirements
- Surface quality: Good surface quality, no scratches, dents, bulges
and other defects
Machining Center
We have our own workshop, we can supply one stop service:
1. Blasting Machine Cleaning The Steel Surface
2. Fiber Machine Cutting The Plate As The CAD Drawings
3. Bending Machine
4. Drill Machine Drill The Holes.
5. Laser & Punch
6. Laser Cutting
7. Folding
8. Insert Installation
9. Fabrication
10. Assembly
Company Introduction
EDEST STEEL CO., LTD is a large comprehensive steel enterprise in
China specializing in the export of stainless steel and carbon
steel. With over 26 years of experience in production, processing,
and sales, we maintain ample stock of stainless steel, carbon
steel, and other steel materials. Currently, we have established
six major production bases nationwide, to provide diversified
processing and production of stainless steel, carbon steel, and
other metal materials to meet your various procurement needs. Our
high-quality products are well-suited for industries such as
energy, manufacturing, machinery, and healthcare.
We are a leading one-stop high-end manufacturing service enterprise
in China, equipped with capabilities in steel material processing,
component fabrication, finished product manufacturing, and
professional technical services. We aim to provide comprehensive
support to global end-user manufacturing enterprises.
Our Services & Strength
We passed certificate ISO9001,ISO14000,OHSAS18001.As a member of
China iron and steel association,we established long term friendly
cooperation with famous domestic mill plants,such as Bao steel,Wu
steel,An steel,Tai steel etc. As well as active pursues
partnerships foreign company ,in order to meet customer
requirement. With concept of 'Keep Improving,Win-win
Cooperation',and executed by reliable quality and after sales
service system,edest steel gained good reputation from customers at
home and abroad.We sincerely welcome you to come our company to
negotiate business!
Our Certificate
Since the establishment of the company, it has passed
ISO9001/ISO14001/OHSAS18001 and other system certifications. MTC
will be shipped with the goods when shipped. At the same time,
support third-party inspection.
Contact Us
EDEST STEEL CO.,LTD.
Address : Qianqiao Industrial Park, Huishan District, Wuxi City,
Jiangsu Province
Contact Person : Mr. Jeff
Mobile/WhatsApp : +8618921116238
Email : jeff@edesteel.com
Our commitment
Our price may not be the lowest, but we adhere to the "quality
first, service first" Our price is reasonable, we will be your most
satisfied supplier in China
If you have any questions, please feel free to contact us! We are
committed to providing you with the best products at the most
reasonable prices, always providing our best service.
