Product Description

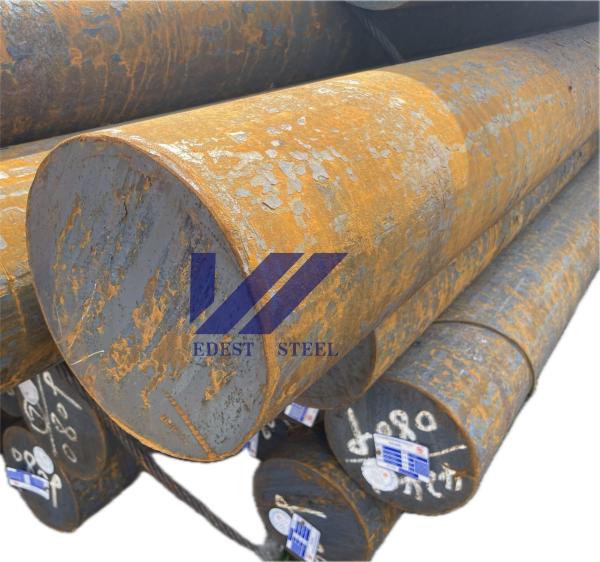

SAE4340 is an alloy steel also known as chromium molybdenum steel.
It is usually used to manufacture mechanical parts with high
strength, high hardness and high corrosion resistance
This material has excellent hardenability and good thermal
stability and can withstand high temperatures and pressures.
During the manufacturing process, 4340 alloy steel usually needs to
go through multiple processes, including smelting, forging, heat
treatment and mechanical processing. Its manufacturing process is
complex, but the parts made have high hardness and corrosion
resistance and can meet many demanding application scenarios.
Features:
Strength and Toughness: 4340 Bar offers excellent strength and
toughness
Wear resistance: 4340 bar has good wear resistance
High temperature performance: 4340 bar maintains good strength and
hardness at high temperatures, making it suitable for applications
in high temperature environments
Ease of processing: 4340 bar has good processing performance and
can be used for common processing techniques such as heat
treatment, machining and welding.
Technical Parameters:
4340 alloy steel round bar is widely used in the aerospace industry
because of its ultra-high strength. It is known for its toughness
after heat treatment while maintaining good fatigue strength. This
is an excellent choice for highly stressed parts. It can be
processed by all conventional methods. The material is available in
both vacuum melted (VM) and air melted (AM) forms.
4340 rod/bar has excellent strength, toughness and wear resistance,
it is widely used in various industries and applications.
Chemical Composition
| Carbon | 0.38-0.43 |
| Manganese | 0.60-0.80 |
| Phosphorus (max) | 0.035 |
| Sulfur (max) | 0.04 |
| Silicon | 0.15-0.35 |
| Nickel | 1.65-2.00 |
| Chromium | 0.70-0.90 |
| Molybdenum | 0.20-0.30 |
| Quenching | Tempering |
| Heating Temperature/ºC | Cooling | Hardness/HRC | Heating Temperature/ºC | Cooling | Hardness/HRC |
| 820-840 | Oil | ≥53 | 450-650 | Air | 25-40 |
| Tensile strength (psi) | 105,000 - 115,000 |
| Yield strength (psi) | 75,000 - 85,000 |
| Elongation in 2" (%) | 20 - 30 |
| Reduction of area (%) | 35 - 45 |
| Brinell Hardness (BHN) | 210 - 240 |
company advantage:
The alloy steel bars of EDEST STEEL have the following main
characteristics:
High strength: It has higher strength than ordinary steel.
Toughness: Suitable for applications that require impact resistance
and wear resistance.
Corrosion resistance: suitable for use in harsh environments.
Wide size range: The diameter range of EDEST STEEL's alloy steel
bars ranges from 20mm to 1200mm, making them suitable for various
applications.
Alloy steel bars can be heat treated through processes such as
annealing, normalizing, tempering, and quenching to achieve the
required mechanical properties, with multiple heat treatment
processes available for selection
Application areas:
- Aircraft Landing Gear
- Power Transmission Gears
- Structural Use Applications
- High strength shafts
- Punches & dies
- Drill bushings
- Retaining rings
- Gears
Customization:
Bar customization
We are a professional alloy steel bar manufacturer and can
customize bar products that meet specific needs.
Requirement confirmation: Specification requirements, including
diameter, length, material, etc. Detailed drawings or instructions
can be provided to complete customization
Material selection: according to requirements and application
environment
Processing technology: customized cutting, forging, heat treatment,
etc. according to customer needs
Production and manufacturing: According to customer requirements,
the manufacturing, processing, molding, heat treatment and surface
treatment of bars are carried out.
Quality Control: Ensure bar products comply with requirements and
international standards. We will strictly inspect the bar, measure
its dimensions, and test its mechanical properties, etc.
Delivery and service: After customization is completed, final
inspection and packaging will be performed, and the product will be
delivered to you according to the agreed delivery method.
EDEST provides after-sales service to ensure customer satisfaction
and long-term product use.
Stock Size
| Plate | Thickness | 20-120mm |
| Width | 2200mm |
| Length | 4000-10000mm |
| round bar | Diameter | 16-450mm |
| Length | 4000-10000mm |
