Product Description:

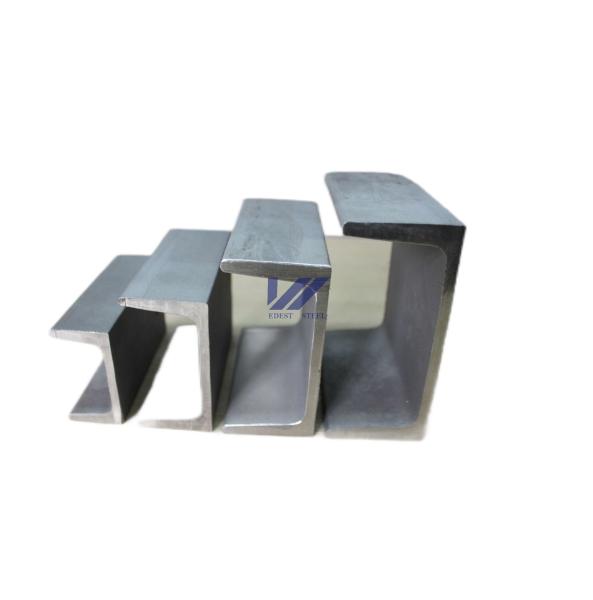

Our stainless steel channels are available in two channels: U
channel and C channel.
C channel:
C-channels tend to have shorter legs and thinner bodies
C-shaped channel steel includes:
• 304 U-shaped groove
• 316 U-shaped groove
Stainless steel C-channels can withstand corrosive environments and
are best suited for use around chemicals, acids, and salt water. We
offer laser fused non-tapered or hot rolled tapered C-sections.
U-shaped groove
The U-shaped channel is like a U-shaped square, with both sides
symmetrical.
U-shaped channels are extremely durable and reliable
Available materials are:
• 304L U-shaped channel
• 316L U-shaped channel
U channel steel has a smooth surface. We can customize stainless
steel channels in various sizes.
feature:
Features of stainless steel channel steel
Lightweight and high-strength: Stainless steel channel steel is
lightweight and high-strength, making it widely used in fields such
as construction, machine manufacturing, and lightweight steel
structures.
Excellent plasticity and processability: Stainless steel channel
steel is easy to cut, weld and process, suitable for various
complex design requirements
Good axial compressive strength: Stainless steel channel steel can
withstand large pressure and is suitable for occasions with high
load requirements
Large section modulus: Stainless steel channel steel has strong
bearing capacity and enhances structural stability.
Smooth surface and easy to handle: Stainless steel channel steel
has a smooth and flat surface, which is easy to handle and can
improve corrosion resistance and aesthetics.
Various cross-sectional shapes: Stainless steel channels include
C-shaped, U-shaped, open-type, etc. Channel steels of different
shapes have different uses and have wide applicability.
Economical and suitable: Stainless steel channel steel has good
mechanical properties. During rolling, the extension of each point
on the cross-section is relatively balanced and the internal stress
is small, which can reduce the construction structure by 30%.
Good anti-corrosion: Stainless steel channel steel can be bent,
welded, punched and other surface treatments according to the
requirements of the use environment to improve anti-rust and
anti-corrosion capabilities
Stainless steel channel steel is an indispensable and important
material in modern industry and construction fields.
Technical Parameters:
| Products: | Stainless Steel U Channel |
| Grade: | 316,316L |
| Type: | ASTM standard(10#-40#,100*48mm--400*102mm) JIS standard(50*25mm--250*90mm) |
| Length: | 6m, 12m, Large quantities can be customized |
| Technique: | Hot rolled |
| Application: | Mainly used for building structure, vehicle manufacturing, and
other industrial structure, channel steel is often used with i
beam. |
| Payment Terms: | L/C or T/T |
Our stainless steel channel stock
| ominal Size (mm) | Depth of Section (mm) | Flange Width (mm) | Flange Thickness (mm) | Web Depth (mm) | Web Thickness (mm) | Weight (kg/m) | Metres/ Tonne (m/t) | 9m | 10.5m | 12m |
|---|
| 100 x 50 | 100 | 50 | 6.70 | 87 | 4.20 | 8.33 | 120 | ✓ | | ✓ |
| 125 x 65 | 125 | 65 | 7.50 | 110 | 4.70 | 11.90 | 84 | ✓ | | ✓ |
| 150 x 75 | 150 | 75 | 9.50 | 131 | 6.00 | 17.70 | 57 | ✓ | ✓ | ✓ |
| 180 x 75 | 180 | 75 | 11.00 | 158 | 6.00 | 20.90 | 48 | ✓ | ✓ | ✓ |
| 200 x 75 | 200 | 75 | 12.00 | 176 | 6.00 | 22.90 | 44 | ✓ | ✓ | ✓ |
| 230 x 75 | 230 | 75 | 12.00 | 206 | 6.50 | 25.10 | 40 | ✓ | ✓ | ✓ |
| 250 x 90 | 250 | 90 | 15.00 | 220 | 8.00 | 35.50 | 28 | ✓ | ✓ | ✓ |
| 300 x 90 | 300 | 90 | 16.00 | 268 | 8.00 | 40.10 | 25 | ✓ | ✓ | ✓ |
| 380 x 100 | 380 | 100 | 17.50 | 345 | 10.00 | 55.20 | 18 | ✓ | ✓ | ✓ |
| 50 x 25 | 50 | 25 | | | | 3.83 | 261 | ✓ | | ✓ |
Applications:
Stainless steel channel steel is a versatile steel material that is
widely used in many fields.
achitechive:
Stainless steel channel steel is often used to make steel
structural frames, which constitute the main structure, roof,
cornice and wall of the building.
Machinery manufacturing:
Stainless steel channels play an important role in manufacturing
cranes, pressure vessels, conveying equipment, etc. Its stability
and load-bearing capacity make it an important material in the
field of machinery manufacturing.
Bridge construction:
In bridge construction, stainless steel channel steel is widely
used to build the main structure and support structure, making it
an ideal choice due to its high strength and corrosion resistance.
Shipbuilding industry: Stainless steel channel steel is used to
manufacture the inner and outer shell structures, wings and other
key parts of the hull. Its high strength and corrosion resistance
are crucial to ensuring the safety of the ship structure and
navigation quality.
Automobile manufacturing industry: Stainless steel channel steel
plays a key role in the production of automobile bodies. It is used
to form the body frame and structure, providing the necessary
impact resistance and durability.
Stainless steel channel steel is also used in the production of
automobile chassis and suspension systems to improve load-bearing
capacity, rigidity and vehicle handling.
Customization:
Model of stainless steel channel steel:
The model of stainless steel channel steel is composed of three
parameters: height, waist thickness and waist width of the channel
steel.
For example, the stainless steel channel steel model No. 5 has a
height of 50 mm, a waist thickness of 5 mm, and a waist width of 37
mm. It can be customized by customers.
Length of stainless steel channel:
The length of channel steel is generally 6 meters or 12 meters, and
can be customized according to customer needs.
Thickness of stainless steel channel steel:
The thickness of channel steel generally ranges from 3 mm to 10 mm
and can be customized according to customer needs.
Width of stainless steel channel:
The width of channel steel generally ranges from 37 mm to 400 mm,
and can be customized according to customer needs.
Packing and Shipping:
| Packaging and delivery |
| Packaging Details | With wooden pallets, Standard Sea Worthy Package or as per customer
required |
| We wrap the stainless steel products with outer packaging(edgeboard
and wood footplate) and inner packaging (corrugated board or
customized). |
Supply Ability
| Packaging and delivery |
| Supply Ability | 5000 Ton/Tons per Month |
