Product Description:

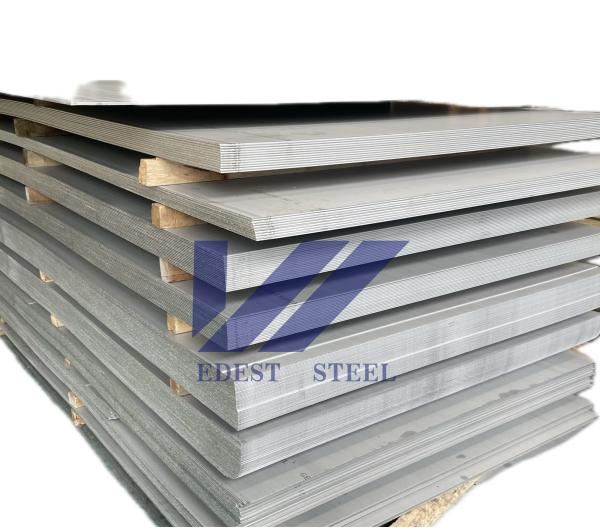

Product name: 304 stainless steel plate
Shape: Sheet
Type: Cold rolled Hot rolled
Payment terms: FOB/CFR/EXW
Production capacity: 5000 tons/month
Grade: 300 series stainless steel
304 stainless steel plate is a common material among stainless
steel. It belongs to austenitic stainless steel. Its main
components include chromium (Cr) content of 18% - 20%, nickel (Ni)
content of 8% - 10.5%, and a small amount of carbon (C), silicon
(Si), manganese (Mn), phosphorus (P), sulfur (S) and other
elements. It is also called 18/8 stainless steel in the industry.
Our 304 stainless steel decorative plates are available in
different sizes and thicknesses, making it easy to find products
that suit your specific project needs. The plate also offers
different surface treatments, including brushed, mirror and satin,
providing you with more customized options.
Our 304 stainless steel plates are widely used and can be used in a
variety of applications, including construction, automotive, food
processing and chemical processing industries.
Features:
Good corrosion resistance: It has strong corrosion resistance to
oxidizing acids, such as nitric acid below the boiling temperature
with a concentration of ≤65%; it also has good corrosion resistance
to alkaline solutions and most organic and inorganic acids.
Excellent hot and cold processing and forming performance: It can
be processed to produce various products such as plates, tubes,
wires, strips, and shapes, and is suitable for manufacturing parts
for cold heading, deep drawing, and deep drawing.
Good low-temperature performance: At -180℃, the strength,
elongation, and cross-sectional shrinkage are very good. Since
there is no brittle transition temperature, it is often used at low
temperatures.
Good welding performance: It can be welded by the usual welding
method, and no heat treatment is required before and after welding.
Has a stable austenite structure: It has a stable austenite
structure at room temperature.
Performance parameters: density 7.93g/cm³, tensile strength 520MPa,
conditional yield strength 205MPa, elongation 40%, cross-sectional
reduction 60%, hardness 187HBW, 90HRB, 200HV, melting point 1398 -
1454℃.
High temperature resistance
Durable and long-lasting
Corrosion resistance
Easy to clean and maintain
Available in various sizes and thicknesses
Technical Parameters:
Product Name | 304L Stainless Steel Sheet/Plate |
Thickness | 0.30~150mm |
Width | 1000mm,1219mm,1500mm,1800mm,2000mm,etc |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Standard | ASTM GB/T JIS4 ASME BS DIN EN |
Material | 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347,
347H, 304, 304L,302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S,
420, 430, 631, 904L, Duplex, etc. |
Brand Name | EDEST,TISCO, BAO STEEL, ZPSS |
Technique | Hot Rolled And Cold Rolled |
Surface | 2B, 2D, BA, NO. 1, NO. 4, NO. 8, 8K, mirror,checkered,embossed,hair
line, sand blast, Brush, etching, etc |
Price Term | Ex-Work, FOB, CNF, CFR, CIF, etc |
Stainless steel composition content
stainless steel composition content |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
304 | ≤0.08 | ≤2 | ≤0.75 | ≤0.045 | ≤0.03 | 18-20 |
| 8-10.5 | ≤0.1 |
304L | ≤0.03 | ≤2 | ≤1 | ≤0.045 | ≤0.03 | 18-20 |
| 9-11 |
|
304H | 0.04-0.1 | ≤2 | ≤0.75 | ≤0.045 | ≤0.03 | 18-20 |
| 8-10.5 |
|
316 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.035 | ≤0.03 | 16.0-18.5 | 2.0-3.0 | 10.0-14.0 |
|
321 | ≤0.08 | ≤2.00 | ≤0.75 | ≤0.75 | ≤0.03 | 7.00-19.0 |
| 9.00-12.00 | |
Applications:
Chemical industry: Stainless steel plates are widely used in the
manufacture of chemical equipment, such as storage tanks,
pipelines, reactors, heat exchangers, etc., due to their strong
corrosion resistance. For example, in enterprises that produce
corrosive chemicals such as strong acids and alkalis, 316L
stainless steel plates are often used to ensure the safe operation
and service life of the equipment.
Petroleum industry: Pipelines used for oil extraction and
transportation, as well as oil refining equipment. For example, on
offshore oil platforms, stainless steel plates can resist the
corrosion of seawater.
Machinery manufacturing: Mechanical parts such as bearings, gears,
springs, pistons, etc. can be made. Their high strength and wear
resistance ensure the normal operation of machinery under harsh
conditions such as high load and high speed operation.
Food processing and pharmaceutical industry: Food-grade stainless
steel plates (such as 304, 316) are often used to manufacture food
processing equipment, storage containers, transportation pipelines,
etc., because they have good hygiene and corrosion resistance,
which can ensure the safety and hygiene of food and medicine.
Support and Services:
The 304 stainless steel sheet is a versatile material that is
commonly used in various industries, including construction,
automotive, and food processing. Our technical support team is
available to assist with any questions or concerns regarding the
product's properties, applications, and performance. Additionally,
we offer a range of services, including custom cutting, machining,
and fabrication, to meet your specific requirements. Our team of
experts can provide guidance on the best practices for handling,
storing, and maintaining the product to ensure optimal performance
and longevity. Contact us today to learn more about our technical
support and services.
Packing and Shipping:
Standard seaworthy export packing:
3 layers of packing, inside is kraft paper, water plastic film is
in the middle and outside GI steel sheet to be covered by steel
strips with lock.
1. Export seaworthy packing: a water proof paper + an inhibitor
film + a steel sheet cover with steel edge protectors and
sufficient steel straps
2. Packaging detail:as customer's requirements.
Product display
Manufacturing capabilities
Machining Center
