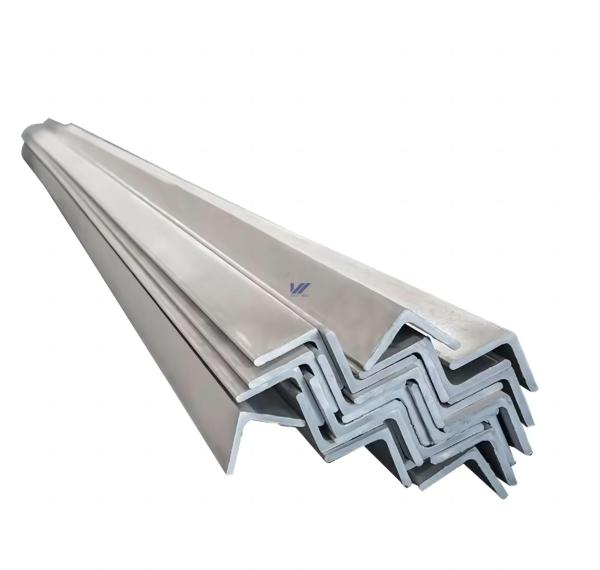

Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle

    Buy cheap Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle from wholesalers

    Buy cheap Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle from wholesalers
    • Buy cheap Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle from wholesalers
    • Buy cheap Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle from wholesalers
    • Buy cheap Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle from wholesalers
    • Buy cheap Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle from wholesalers

    Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle

    Ask Lasest Price
    Brand Name : EDEST STEEL
    Model Number : Stainless Steel Angle
    Certification : ISO,PE, MTC BV SGS
    Price : $1030-$1480 /Ton
    Payment Terms : L/C, T/T
    Supply Ability : 5000 Ton/Tons per Month
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle

    Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle


    • Products: Stainless steel angle
    • Standards: AISI, ASTM, BS, GB, JIS, EN
    • Size: 25mm * 25mm * 3mm-200mm * 200mm * 20
    • Length: 6 meters or required length below 12m
    • Process: hot rolling
    • Grade: 200 series 300 series angle steel
    • Origin: China

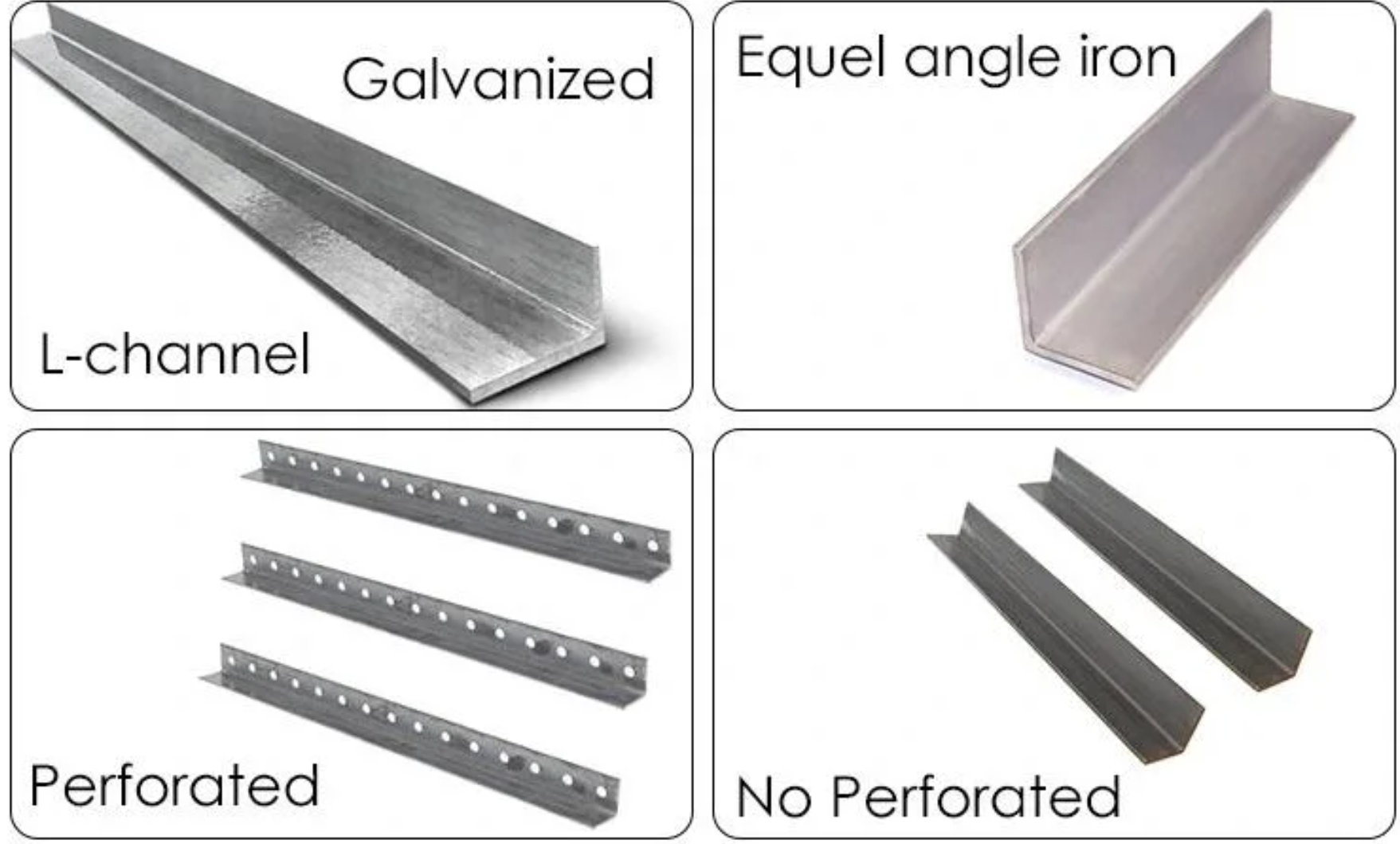

    • Type: equal sides, unequal sides
    • Certification: CE, SGS, ISO, CCC, NEMA, BV
    • Inspection: Accept BV SGS inspection
    • Processing services: bending, punching, cutting, welding, etc.
    • Applications: structural support, bracket, industry, construction, mechanical structure, etc.
    • Packing details: suitable for long-distance sea transportation; bundled into bulk; according to customer requirements

    Material characteristics:


    Corrosion resistance
    It can maintain good performance in a variety of harsh environments, and is not easy to rust and corrode. For example, it has excellent performance in humid, acidic and alkaline environments. Different stainless steel grades have different corrosion resistance. For example, the corrosion resistance of 316 stainless steel angle steel is better than that of 304 stainless steel angle steel. It is suitable for marine environments, chemical industries and other fields that require higher corrosion resistance.
    High strength
    It has high strength and can withstand certain structural loads. It can be used to build structures such as building frames and support beams to provide stable support for buildings and projects.
    Good processing performance
    It has good plasticity and processability. It can be made into components of various shapes and sizes through cutting, welding, bending and other processing methods to meet the needs of different projects and buildings.
    Beautiful appearance
    The surface is smooth and bright, with a modern metal texture. It can be used as a decorative material for buildings to enhance the beauty of buildings.


    Our advantages

    • Manufacturer direct sales for more than 20 years of production and operation
    • Small batch production is acceptable
    • Passed international standard quality inspection
    • 7*24 hours professional team service
    • The fastest delivery time is as short as seven days
    • One-stop sales service to ensure after-sales level

    304 stainless steel angle stock size table

    Drawing

    Equal angle(Axt)

    Size(mm)Theoretical weight
    (kg/m)
    Size(mm)Theoretical weight
    (kg/m)
    Size(mm)Theoretical weight
    (kg/m)
    25x31.12475x77.976110x1422.809
    25x41.45975x89.03125x815.504
    30x31.37375x1011.089125x1019.133
    30x41.78680x67.376125x1222.696
    40x31.85280x78.525125x1426.193
    40x42.42280x89.658140x1021.488
    40x52.97680x1011.874140x1225.522
    50x43.05990x68.35140x1429.49
    50x53.7790x79.656140x1635.393
    50x64.46590x810.946160x1024.729
    60x54.5290x1013.476160x1229.391
    60x65.4290x1215.94160x1433.987
    63x54.822100x69.366160x1638.518
    63x65.721100x710.83180x1233.159
    63x87.469100x812.276180x1438.383
    63x109.151100x1015.12180x1643.542
    70x55.397100x1220.611180x18548.634
    70x66.406100x1623.257200x1442.894
    70x77.398110x711.928200x1648.68
    70x88.373110x813.532200x1854.401
    75x55.818110x1016.69200x2060.056

    Chemical composition table of stainless steel angle

    GradeChemical Composition (%)
    CSiMnPSNiCrMo
    201≤0.15≤1.005.5~7.5≤0.060≤0.0303.50~5.5016.00~18.00
    301≤0.15≤1.00≤2.00≤0.045≤0.0306.00~8.0016.00~18.00
    302≤0.15≤1.00≤2.00≤0.045≤0.0308.00~10.0017.00~19.00
    304≤0.08≤1.00≤2.00≤0.045≤0.0308.00~10.5018.00~20.00-
    304L≤0.030≤1.00≤2.00≤0.045≤0.0309.00~13.5018.00~20.00-
    316≤0.045≤1.00≤2.00≤0.045≤0.03010.00~14.0010.00~18.002.00~3.00
    316L≤0.030≤1.00≤2.00≤0.045≤0.03012.00~15.0016.00~18.002.00~3.00

    Stainless Steel Profiles 304/316/304L/316L Stainless Steel Angle

    Manufacturing capacity

    EDEST STEEL have more than ten years stainless steel products exporting experience, with full range of product lines, including stainless steel bars, profiles, pipes and tubes, stainless steel strips and sheets etc. We have rofessional sales and service teams with our own processing center, enough inventory to make sure fast delivery, products can also be customized. We're aiming to provide customer a One-stop service.


    Our commitment


    our price may not be the lowest, but we adhere to the "quality first, service first" Our price is reasonable, we will be your most satisfied supplier in China

    If you have any questions, please feel free to contact us! We are committed to providing you with the best products at the most reasonable prices, always providing our best service.
