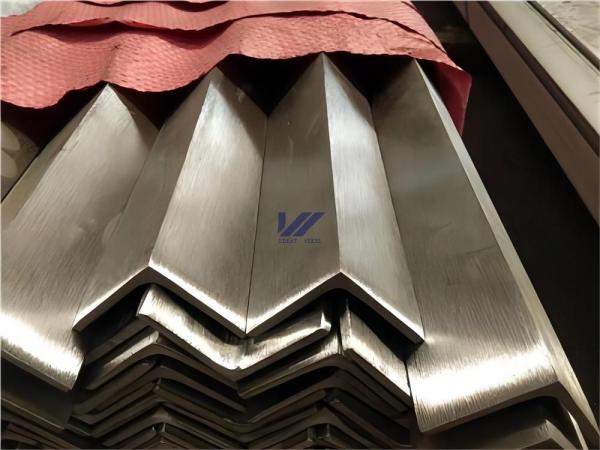

304 type angle steel 40x40x4mm hot sale 304 angle
Specifications:
"40x40x4mm" specifically means that the two sides of the angle
steel are 40 mm wide and 4 mm thick. This size of angle steel is
widely used in fields such as construction and machinery
manufacturing. It can provide sufficient support and stability
without being too heavy, making it easy to carry and install.
The 40 mm side width has good structural symmetry. Whether it is
used as an independent support or used to build a frame structure,
it can provide relatively uniform support and stability.
The thickness of the angle steel is 4 mm. This thickness ensures
that the angle steel has a certain strength and rigidity, while not
making it too heavy, making it easy to transport, install and
process.
Welding performance:
304 stainless steel has good welding performance and is not prone
to defects such as cracks and pores during welding. This allows 304
40x40x4mm angle steel to be easily welded to other steel or metal
parts, thereby expanding its application range
Processing performance:
In addition to good welding performance, the angle steel also has
good cold processing properties and can be cut, drilled, punched
and other secondary processing operations to meet the specific
needs of different projects
High temperature resistance:
304 stainless steel can still maintain good strength and corrosion
resistance in high temperature environments, and its maximum
operating temperature can reach about 800℃. Therefore, in some
equipment manufacturing and engineering construction in high
temperature environments, 304 40x40x4mm angle steel also has
certain applications
Uses:
- Used for supporting building structures, such as beams, columns,
brackets, etc. of houses;
- Used for building stair handrails, railings, balcony guardrails,
etc.
- In the process of mechanical manufacturing, it can be used as a
component of mechanical frames, workbenches, and brackets for
conveying equipment to provide stable support and connection for
mechanical equipment.
- In the field of decoration, it can be used for indoor and outdoor
decoration projects, such as making screens, partitions, decorative
lines, etc.
- Widely used in chemical equipment, pressure vessels, food
processing, medical equipment and other industries.
304 stainless steel angle stock size table
Drawing Equal angle(Axt) |
| Size(mm) | Theoretical weight
(kg/m) | Size(mm) | Theoretical weight
(kg/m) | Size(mm) | Theoretical weight
(kg/m) |
| 25x3 | 1.124 | 75x7 | 7.976 | 110x14 | 22.809 |
| 25x4 | 1.459 | 75x8 | 9.03 | 125x8 | 15.504 |
| 30x3 | 1.373 | 75x10 | 11.089 | 125x10 | 19.133 |
| 30x4 | 1.786 | 80x6 | 7.376 | 125x12 | 22.696 |
| 40x3 | 1.852 | 80x7 | 8.525 | 125x14 | 26.193 |
| 40x4 | 2.422 | 80x8 | 9.658 | 140x10 | 21.488 |
| 40x5 | 2.976 | 80x10 | 11.874 | 140x12 | 25.522 |
| 50x4 | 3.059 | 90x6 | 8.35 | 140x14 | 29.49 |
| 50x5 | 3.77 | 90x7 | 9.656 | 140x16 | 35.393 |
| 50x6 | 4.465 | 90x8 | 10.946 | 160x10 | 24.729 |
| 60x5 | 4.52 | 90x10 | 13.476 | 160x12 | 29.391 |
| 60x6 | 5.42 | 90x12 | 15.94 | 160x14 | 33.987 |
| 63x5 | 4.822 | 100x6 | 9.366 | 160x16 | 38.518 |
| 63x6 | 5.721 | 100x7 | 10.83 | 180x12 | 33.159 |
| 63x8 | 7.469 | 100x8 | 12.276 | 180x14 | 38.383 |
| 63x10 | 9.151 | 100x10 | 15.12 | 180x16 | 43.542 |
| 70x5 | 5.397 | 100x12 | 20.611 | 180x185 | 48.634 |
| 70x6 | 6.406 | 100x16 | 23.257 | 200x14 | 42.894 |
| 70x7 | 7.398 | 110x7 | 11.928 | 200x16 | 48.68 |
| 70x8 | 8.373 | 110x8 | 13.532 | 200x18 | 54.401 |
| 75x5 | 5.818 | 110x10 | 16.69 | 200x20 | 60.056 |
Chemical composition table of stainless steel angle
| Grade | Chemical Composition (%) |
| C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5~7.5 | ≤0.060 | ≤0.030 | 3.50~5.50 | 16.00~18.00 | |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 6.00~8.00 | 16.00~18.00 | |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.00 | 17.00~19.00 | |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | ≤0.045 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
