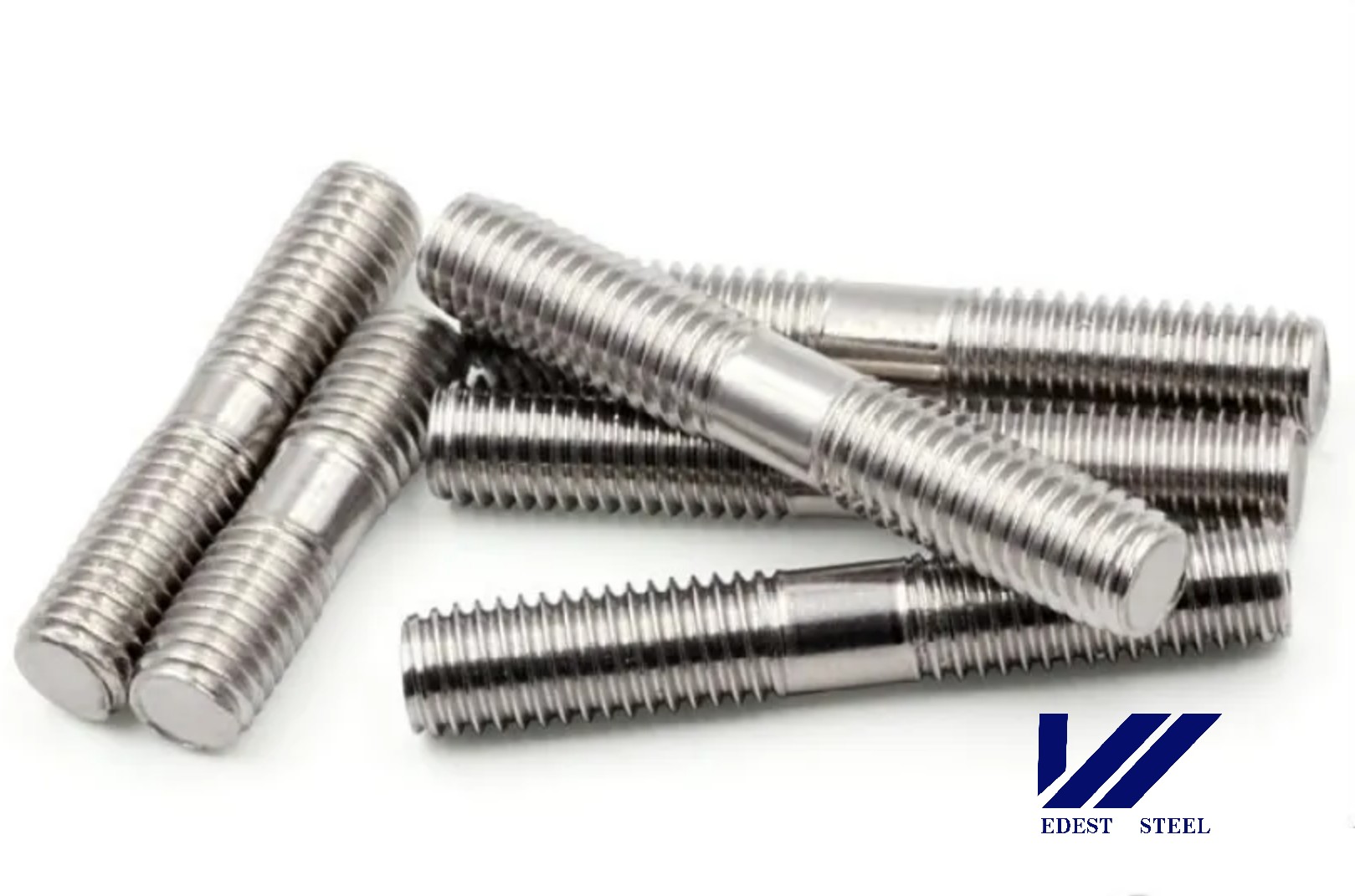

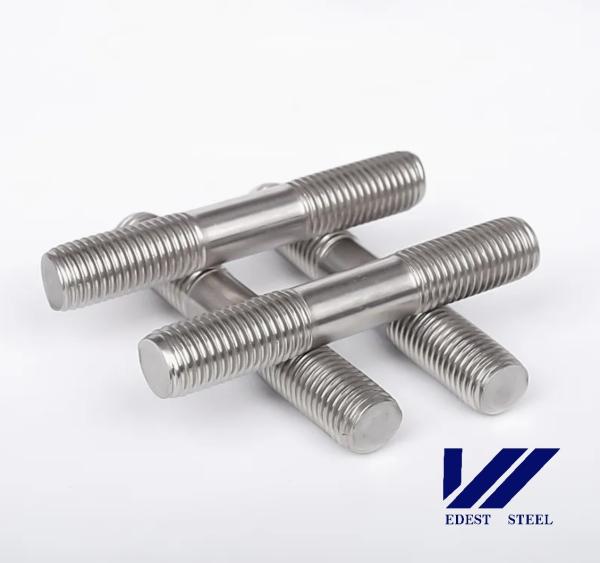

304 Stainless Steel Clamping Studs Stud Clamping Type
Diameter
The diameter of studs is generally expressed in millimeters (mm),
and common diameters include M6, M8, M10, M12, M16, M20, etc. The
choice of diameter mainly depends on the strength and load
requirements required for the connected parts.
For example, in light structures, smaller diameter studs such as M6
or M8 may be used; while in heavy machinery or large building
structures, larger diameter studs such as M20 or larger M56 may be
required.
Standard:ASME/ANSI B 18.2.1,IFI149,DIN931,DIN933,DIN558,
DIN601,DIN960, DIN961, ISO4014,ISO4017
Grade:TA1,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC3,TC4,TB2,Gr1,Gr2,Gr3,
Gr5, Gr7, Gr12etc
Material:Alloy Steel,Stainless Steel,Titanium alloy
Size:various ad type
MinimumOrder:according to customer demand
soonest delivery
sea-worthy package
Packing:bulk in cartons (25kg Max.)+wood Pallet or according to
customer special demand
Application:Structural Steel; Metal Buliding;
Oil&Gas;Tower&Pole; Wind Energy; Mechanical Machine;
Automobile: Home Decorating
Bicycle,Motorcycle,MedicalIndustry,Surgicalimplants,Chemicalindustry,Aerospace,Spaceflight,Airplane,Ship,Auto,Cars,Wheelchair,
Sports,Military etc.
Stud length
The length of a stud is also in millimeters.
The length needs to be determined taking into account the thickness
of the parts being connected and the margin required for
installation.
Common lengths are 30mm, 40mm, 50mm, 60mm, 80mm, 100mm 200mm 300mm
600mm 800mm, etc.
For example, if you want to connect two parts that are 20mm thick,
plus the thickness of the nut and washer, you may need to choose a
stud with a length of 60mm.
Thread specifications
Thread type:
Generally divided into coarse thread and fine thread. Coarse thread
has a larger pitch and faster installation speed, but the tightness
of the connection is relatively low; fine thread has a smaller
pitch and a tighter connection, which is suitable for occasions
that require higher precision and sealing.
Thread accuracy:
Usually divided into different grades, such as 4.8, 6.8, 8.8, etc.
The higher the thread accuracy grade, the better the dimensional
accuracy and mechanical properties of the stud.
Thread length at both ends of the stud
Depending on different usage requirements, the thread length at
both ends of the stud can be different. Generally speaking, the
thread length should be long enough to ensure that the nut can be
firmly tightened on the stud, while also considering the
limitations of the installation space. For example, for some
occasions with limited space, it may be necessary to choose a stud
with a shorter thread length.
Technical Parameters
| Standard: | GB/T 901-1988 Double End Studs (Clamping Type) |
| Sizes | M2--M56 | |
| Material | Stainless Steel: | SS201, SS303, SS304, SS316,SS316L,SS904L,F593 |
| Steel Grade: | DIN: Gr.4.6,4.8,5.6,5.8,8.8,10.9,12.9; SAE: Gr.2,5,8; ASTM:
307A,307B,A325,A394,A490,A449, |
| Titanium alloy: | GR1,GR2,GR5,GR7-GR23 |
| NICKLE ALLOY | N4,N6,200,201 AND C276 |
| Finishing | Original,polished
Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG),Black Oxide,
Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated |
| Process | cold forging M2-M56 | or customed |
We need more detail as follow. This will allow us to give you an
accurate quotation.
Before offer the price,get the quote simply by completing and
submitting the form below:
Product:________
Measure: _______ all (Inside Diameter) x_______(Outside
Diameter)x_______(Thickness)
Order Quantity: _________________pcs
Material: ____________
When do you need it by? ___________
Where to Shipping: _______________
Email your drawing.
At the same time, we can also provide carbon steel and alloy steel
stud bolts.
Products
Machining Center
We have our own workshop, we can supply one stop service:
1. Blasting Machine Cleaning The Steel Surface
2. Fiber Machine Cutting The Plate As The CAD Drawings
3. Bending Machine
4. Drill Machine Drill The Holes.
5. Laser & Punch
6. Laser Cutting
7. Folding
8. Insert Installation
9. Fabrication
10. Assembly
Packaging Details & Shipping
Manufacturing capacity
EDEST STEEL have more than ten years stainless steel products exporting
experience, with full range of product lines, including stainless
steel bars, profiles, pipes and tubes, stainless steel strips and
sheets etc. We have rofessional sales and service teams with our
own processing center, enough inventory to make sure fast delivery,
products can also be customized. We're aiming to provide customer a
One-stop service.
Our commitment
our price may not be the lowest, but we adhere to the "quality
first, service first" Our price is reasonable, we will be your most
satisfied supplier in China
If you have any questions, please feel free to contact us! We are
committed to providing you with the best products at the most
reasonable prices, always providing our best service.
