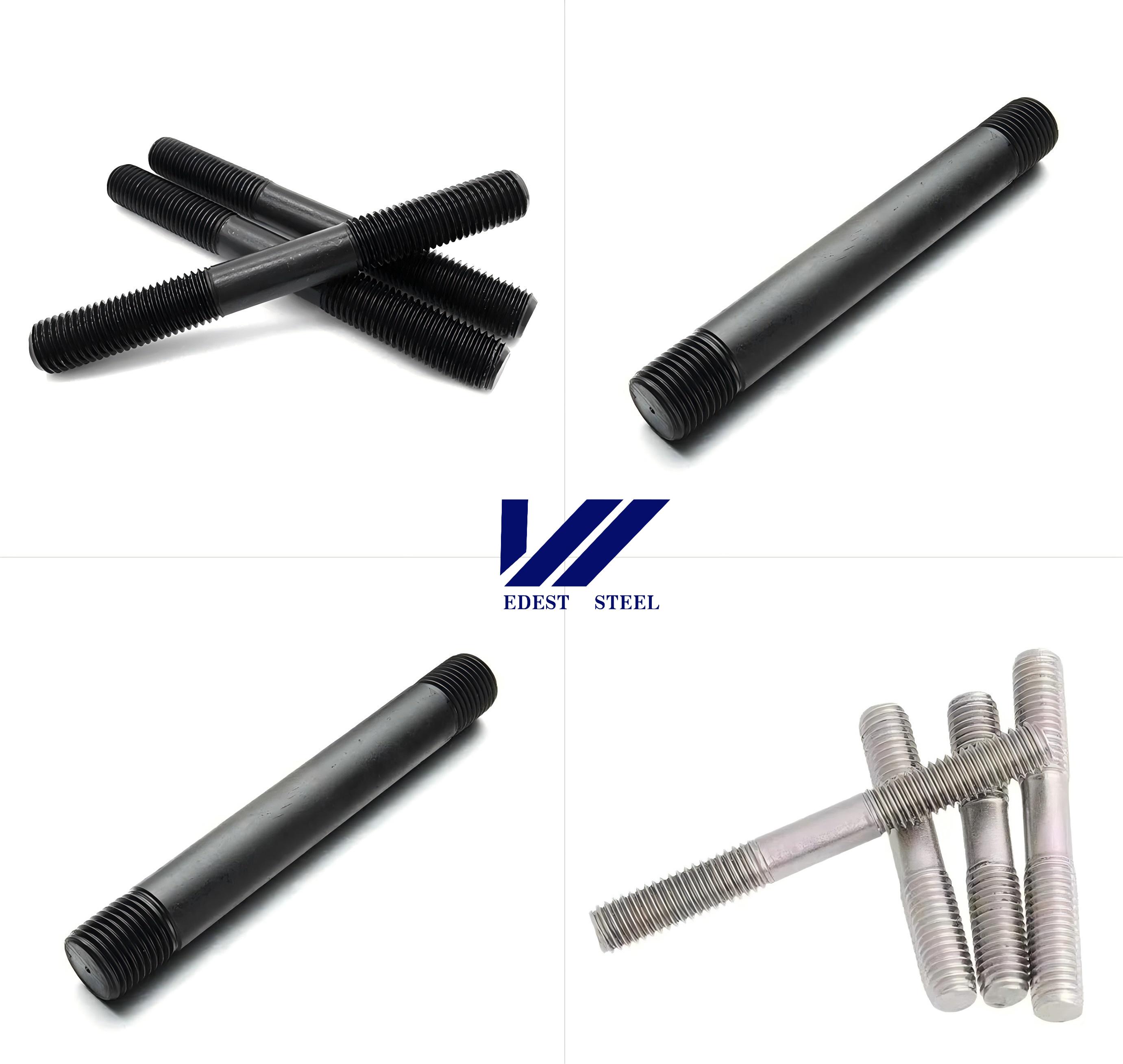

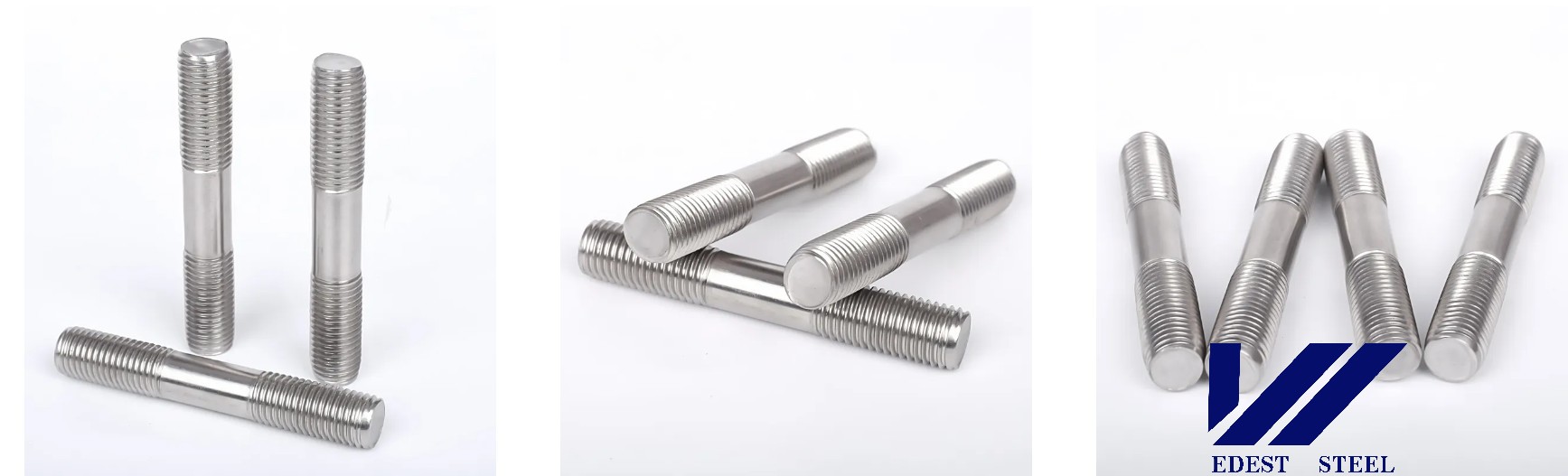

304 Stainless Steel Clamping Studs Stud Clamping Type
A stainless steel stud is a fastener made of stainless steel with
threads at both ends or one end, used to connect two or more parts
with through holes or internal threads.
Structural type
Stud stud:
Both ends are threaded, and it is the most common type of stainless
steel stud. When in use, one end is screwed into the internal
threaded hole of the connected part, and the other end is passed
through the through hole of the other connected part, and then
tightened with a nut to fasten the two connected parts together. It
is often used in places where the connected parts are thick, need
to be disassembled frequently, or have high connection strength
requirements, such as bridges, steel structures, and installation
of large mechanical equipment.
Single-head stud:
Also known as a single-head bolt or stud weld, one end is threaded
and the other end is usually a smooth head. The single-head stud
can be fixed to a part by welding, riveting, etc., and then
connected to another part by thread. It is often used in some
places where there are space restrictions or single-sided
connection is required, such as car bodies, electronic equipment,
etc.
Product Features
304 stainless steel studs: have good corrosion resistance, heat
resistance and processing performance, suitable for general
machinery manufacturing, construction, decoration and other fields.
For example, 304 stainless steel studs are often used to fix
various components in the connection of building curtain walls.
316 stainless steel studs: Compared with 304 stainless steel, 316
stainless steel contains molybdenum, which makes it more resistant
to chloride corrosion and is often used in chemical industry,
marine engineering and other environments with high corrosion
resistance requirements. For example, 316 stainless steel studs are
used in seawater desalination equipment, offshore oil platforms and
other facilities.
316L stainless steel studs: It is a low-carbon version of 316
stainless steel. After welding, it can reduce the tendency of
intergranular corrosion and is suitable for occasions where welding
is required and corrosion resistance is required.
Technical Parameters
| Standard: | GB/T 901-1988 Double End Studs (Clamping Type) |
| Sizes | M2--M56 | |
| Material | Stainless Steel: | SS201, SS303, SS304, SS316,SS316L,SS904L,F593 |
| Steel Grade: | DIN: Gr.4.6,4.8,5.6,5.8,8.8,10.9,12.9; SAE: Gr.2,5,8; ASTM:
307A,307B,A325,A394,A490,A449, |
| Titanium alloy: | GR1,GR2,GR5,GR7-GR23 |
| NICKLE ALLOY | N4,N6,200,201 AND C276 |
| Finishing | Original,polished
Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG),Black Oxide,
Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated |
| Process | cold forging M2-M56 | or customed |
Products
Machining Center
We have our own workshop, we can supply one stop service:
1. Blasting Machine Cleaning The Steel Surface
2. Fiber Machine Cutting The Plate As The CAD Drawings
3. Bending Machine
4. Drill Machine Drill The Holes.
5. Laser & Punch
6. Laser Cutting
7. Folding
8. Insert Installation
9. Fabrication
10. Assembly
Packaging Details & Shipping
Manufacturing capacity
EDEST STEEL have more than ten years stainless steel products exporting
experience, with full range of product lines, including stainless
steel bars, profiles, pipes and tubes, stainless steel strips and
sheets etc. We have rofessional sales and service teams with our
own processing center, enough inventory to make sure fast delivery,
products can also be customized. We're aiming to provide customer a
One-stop service.
Our commitment
our price may not be the lowest, but we adhere to the "quality
first, service first" Our price is reasonable, we will be your most
satisfied supplier in China
If you have any questions, please feel free to contact us! We are
committed to providing you with the best products at the most
reasonable prices, always providing our best service.
